SKIC6001

Features: IGBT-3-phase bridge driver circuit with protection functions• Interlock of TOP and BOTTOM switches in each halfbridge• Short pulse suppression• Supply undervoltage protection• Generation of the system clock• Integrated DC/DC-converter driver circuit• E...

product image

SKIC6001 Picture
See larger image
SeekIC No. : 004492018 Detail

SKIC6001: Features: IGBT-3-phase bridge driver circuit with protection functions• Interlock of TOP and BOTTOM switches in each halfbridge• Short pulse suppression• Supply undervoltage protec...

SKIC6001 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SKIC6001
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

IGBT-3-phase bridge driver circuit with protection functions
• Interlock of TOP and BOTTOM switches in each halfbridge
• Short pulse suppression
• Supply undervoltage protection
• Generation of the system clock
• Integrated DC/DC-converter driver circuit
• Error monitoring


Application

• Driving of IGBTs
- for 3-phase bridge configuration
- due to isolation (magnetic
  transformer, optocoupler) can
  be used for voltages > 1200 V
  and high power applications


Pinout

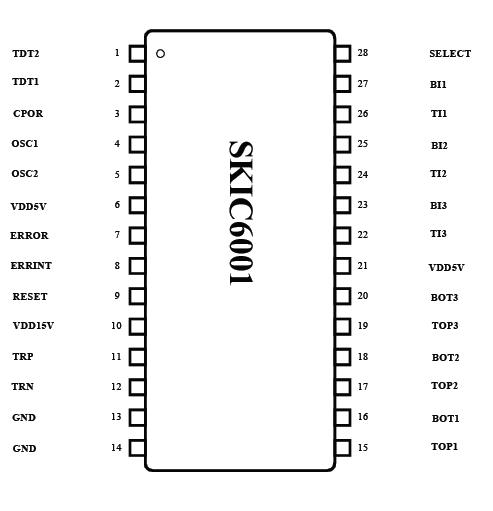

Connection Diagram


Specifications

SYMBOL Term Values UNIT
VDD15V 15 V supply voltage
(reference for output signals)		 18 V
VDD5V 5 V supply voltage
(reference for input signals)		 6 V
ViH input signal voltage (HIGH) max. VDD5V + 0,3 V
ViL input signal voltage (LOW) min. GND - 0,3 V
fsw switching frequency 50 kHz
Top / Tstg operating/storage temp -40...+ 85 °C
