SL1461SA

Features: ·Single chip PLL system for wideband FM demodulation·Simple low component count application·Allows for application of threshold extension·Fully balanced low radiation design·High operating input sensivity·Improved VCO stability with variations in supply or temperature·AGC detect and bias...

product image

SL1461SA Picture
See larger image
SeekIC No. : 004492432 Detail

SL1461SA: Features: ·Single chip PLL system for wideband FM demodulation·Simple low component count application·Allows for application of threshold extension·Fully balanced low radiation design·High operating...

SL1461SA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SL1461SA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Single chip PLL system for wideband FM demodulation
·Simple low component count application
·Allows for application of threshold extension
·Fully balanced low radiation design
·High operating input sensivity
·Improved VCO stability with variations in supply or temperature
·AGC detect and bias adjust
·75W video output drive with low distortion levels
· Dynamic self biasing analog AFC
· Full ESD Protection*


Application

·Satellite receiver systems
·Data communications Systems


Pinout

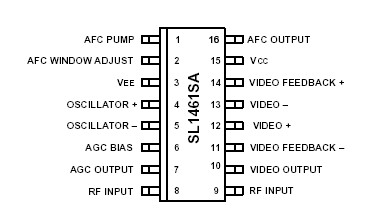

Connection Diagram


Specifications

Characteristics
Min.
Typ.
Max.
Conditions
Supply voltage
RF input voltage
RF input DC offset
Oscillator ± DC offset
Video ± DC offset
Video feedback ± DC offset
Video output DC offset
AFC pump DC offset
AFC disable DC offset
AFC deadband DC offset
AGC bias DC offset
AGC output DC offset
Storage temperature
Junction temperature
MP16 package thermal resistance,
chip to ambient
-0.3
-0.3
-0.3
-0.3
-0.3
-0.3
-0.3
-0.3
-0.3
-0.3
-0.3
-55
7
2.5
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
VCC+0.3
125
150
111
V
Vp-p
V
V
V
V
V
V
V
V
V
V
°C
°C
°C/W



Description

The SL1461SA is a wideband PLL FM demodulator, intended primarily for application in satellite tuners.

The SL1461SA contains all elements necessary, with the exception of external oscillator sustaining network and loop feedback components, to form a complete PLL system operating at frequencies up to 800MHz.

An AFC with window adjust of SL1461SA is provided, whose output signal can be used to correct for any frequency drift at the head end local oscillator.
