Product Details

Description



Features:

· Single chip PLL system for wideband FM demodulation
· Simple low component count application
· Fully balanced low radiation design
· High operating input sensitivity
· 2 stage AGC detect for control over internal and external AGC stages
· Low distortion video output drive
· Video polarity invert
· Digital AFC with window adjust
· ESD protection (Normal ESD handling procedures should be observed)


Application

· Satellite receiver systems
· Data communications systems


Pinout

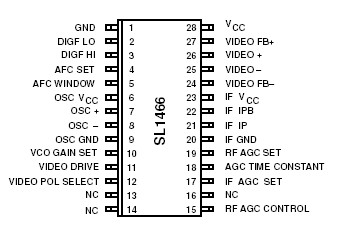

Connection Diagram


Specifications

Characteristic Min Max Units Conditions
Supply voltage
RF input voltage
Storage temperature
Junction temperature
QP 28 package thermal
resistant, chip to ambient
QP 28 package thermal
resistance, chip to case
ESD protection		 -0.3
-55
2		 7
2.5
125
150
93
34		 V
Vp-p
°C
°C
°C/W
°C/W
kV		 Mil std 883B method 30115 cat 1.



Description

The SL1466 is a wideband PLL FM demodulator, intended primarily for application in satellite tuners.

The SL1466 contains all elements necessary, with the  exception of external local oscillator tank and loop filter components, to form a complete PLL system operating at 403 or 480MHz.

An AFC system of SL1466 is provided, whose output signals can be used to correct for any frequency drift at the head end local
oscillator.
