Position: Home  > All Categories> Integrated Circuits (ICs) > SL2150D

SL2150D

Features: • Single chip dual output LNA• Wide dynamic range on both channels• Independent AGC facility incorporated into all channel paths• Independent disable facility incorporated into all channel paths• Full ESD protection. (Normal ESD handling procedures should be...

product image

SL2150D Picture
See larger image
SeekIC No. : 004492472 Detail

SL2150D: Features: • Single chip dual output LNA• Wide dynamic range on both channels• Independent AGC facility incorporated into all channel paths• Independent disable facility incor...

SL2150D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SL2150D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single chip dual output LNA
• Wide dynamic range on both channels
• Independent AGC facility incorporated into all channel paths
• Independent disable facility incorporated into all channel paths
• Full ESD protection. (Normal ESD handling procedures should be observed)


Application

• Multi-tuner cable set top box and cable modem applications
• Data communications systems
• Terrestrial TV tuner loop though

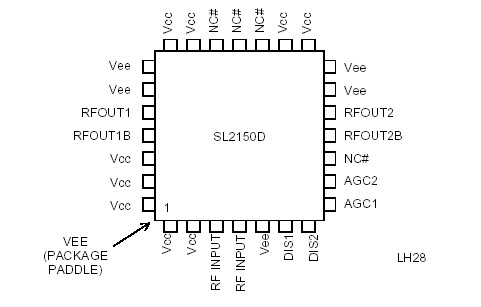

Pinout

Connection Diagram


Specifications

Characteristics
Min.
Max.
Unit
 Conditions
Supply Voltage
-0.3
6
V

RF input voltage
8
dBm
 Differential
All I/O port DC offsets
-0.3
Vcc+0.3
V

Storage temperature
-55
150

Junction temperature
125
Power applied
Package thermal resistance, chip toambient
35
/W
 Paddle to be soldered to
ground plane
Power consumption at 5.25 V
1155
mW

ESD protection
1.6
kV
 Mil-std 883B method 3015 cat1



Description

The SL2150D is a wide dynamic range front end for tuner applications.

The SL2150D offers two buffered outputs from a single input, where both paths contain an independently controllable AGC and disable facility.
