SL2150KG

Features: • Single chip quadruple power splitter (primary channel, secondary channel, OOB channel and loop through)• Wide dynamic range on all channels• Independent AGC facility incorporated into all• channel paths• CSO, CTB, CXM all better than -62dBc for +3dBmV agc ...

product image

SL2150KG Picture
See larger image
SeekIC No. : 004492474 Detail

SL2150KG: Features: • Single chip quadruple power splitter (primary channel, secondary channel, OOB channel and loop through)• Wide dynamic range on all channels• Independent AGC facility in...

SL2150KG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SL2150KG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single chip quadruple power splitter (primary
  channel, secondary channel, OOB channel and
  loop through)
• Wide dynamic range on all channels
• Independent AGC facility incorporated into all
• channel paths
• CSO, CTB, CXM all better than -62dBc for
  +3dBmV agc attack point
• Full ESD protection. (Normal ESD handling
  procedures should be observed)


Application

• Multi-tuner cable set top box and cable modem applications
• Data communications systems
• Terrestrial TV tuner loop though

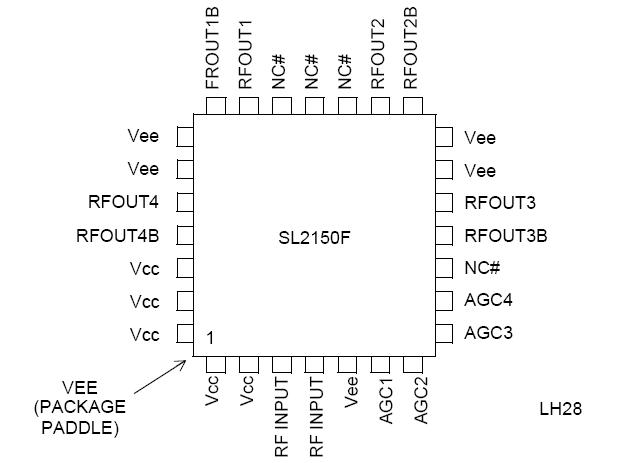

Pinout

Connection Diagram


Specifications

Characteristic min max units Conditions
Supply voltage -0.3 6 V
RF input voltage   8 dBm Differential
All I/O port DC offsets -0.3 Vcc+0.3 V
Storage temperature -55 150 oC
Junction temperature   125 oC Power applied
Package thermal resistance, chip to
ambient		   35 oC/W Paddle to be soldered to
ground plane
Power consumption at 5.25V   1200 mW
ESD protection 1.5   kV Mil-std 883B method 3015 cat1



Description

The SL2150KG is a wide dynamic range single chip power splitter for cable set top box multi-tuner applications.

The SL2150KG offers four buffered outputs from a single input.

All signal paths of SL2150KG contain an independently controllable AGC facility.
