Product Details

Description



Features:

· Fast Acting AGC Improves Operation In Noisy Environments
·Differential Inputs Reduce Noise Pick-up and Improve Stability
· Gyrator Circuit Allows Operation in Environments with High Brightness Background Light Levels
·Output Pulse Stretcher for use with Microprocessor Decoders
· On-chip Regulator allows Operation from Wide Range of Power Supplies
· Low Noise Output


Pinout

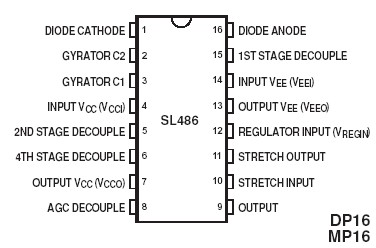

Connection Diagram


Specifications

Supply voltage, VCCI    ........ 110V wrt VEEI
Supply voltage, VCCO   ....... 110V wrt VEEO
Regulator input voltage, VREGIN   ..220V wrt VCCO
Output current    ................ 5mA
Stretch output current  .............  5mA
Operating temperature range   ....0°C to 170°C
Storage temperature   ......  255°C to1150°C




Description

The SL486 is a high gain preamplifier designed to form an interface between an infra-red receiving diode and the digital input of remote control receiving circuits. The device contains two other circuit elements, one to provide a stretched output pulse facility and a voltage regulator to allow operation from a wide range of supplies.
