Features:

`  Meets standard EIA-232-D (Revision of RS-232-C)
`  Drivers
- Current Limited Output                10 mA Typical
- Power-off Output Impedance      300 Min
- Slew Rate Control by Load Capacitor
- Flexible Supply Voltage Range
- Input Compatible with Most TTL and DTL Circuits
`  Receivers
- Input Resistance 3 k to 7 kW
- Input Signal Range ± 30 V
- Built-in Input Hysteresis (Double Threshold)
`  20 DIP/SO20: ÌS-001AD (SL75232N) / ÌS-013AÑ (SL75232D)

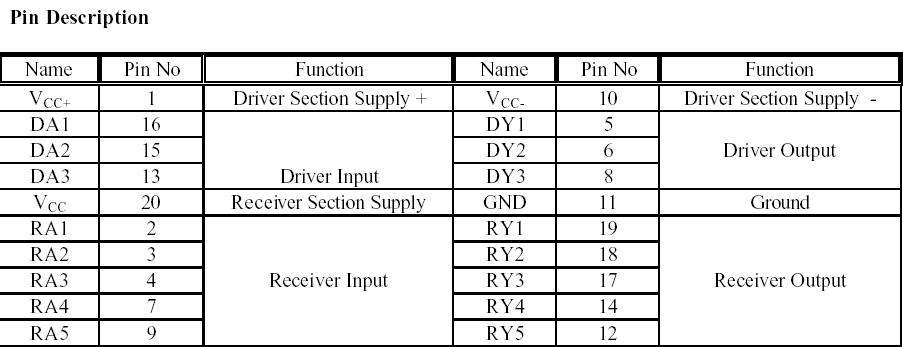

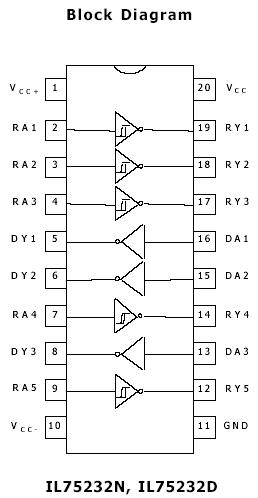

Pinout

Connection Diagram Connection Diagram


Specifications

Symbol Parameter Rating Unit
VCC+ Supply Voltage 15 V
VCC- Supply Voltage -15 V
VCC Supply Voltage 10 V
VI (Driver) Input Voltage -15 ÷ +7 V
VI (Reciver) Input Voltage ± 30 V
VO (Driver) Output Voltage -15 ÷ +15 V
PT Continuous Power Dissipation (Below 25 oC) 1.0 W
TSTG Storage Temperature -65 ÷+175 oC
Top Operating Temperature 0 ÷ +75 oC



Description

   The SL75232N, SL75232D are monolithic device containing 3 independent drives and 5 receivers. These are designed to interface between date terminal equipment and date communication equipment as designed by EIA-232-D.
