Product Details

Description



Features:

` 104 bit user memory fully compatible with SLE 4406/06E
64 bit Identification Area consisting of
• 16 bit Manufacturer code (mask-programmable ROM)
• SLE 4436: 8 bit Manufacturer data, card issuer dependent (ROM) 40 bit for personalization data of card issuer (PROM)
• SLE 4436E: 48 bit for personalization data of card issuer (PROM)
40 bit Counter Area including 1 bit for personalization (PROM/EEPROM) 133 bit additional memory for advanced features
4 bit Counter Backup (anti-tearing flags)
1 bit initiation flag for Authentication Key 2
16 bit Data Area 1 for free user access
48 bit Authentication Key 1
either 48 bit Data Area 2 for user defined data or 48 bit Authentication Key 2
16 bit Data Area 3 for free user access
` &RXQWHUZLWKXSWRFRXQWXQLWVIXOO\FRPSDWLEOHZLWK6/((
Five stage abacus counter
Due to testing purposes a maximum of 21064 count units is guaranteed
` &RXQWHUWHDULQJSURWHFWLRQ
Backup feature activated at choice
` +LJKVHFXULW\DXWKHQWLFDWLRQXQLW
Random number as challenge
Individual secret Authentication Key 1
Optional individual secret Authentication Key 2
Calculation of up to 16 bit response
Calculation of a 16 bit response within 30 ms at a clock frequency of 100 kHz


Pinout

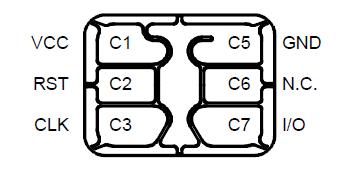

Connection Diagram


Description

SLE 4436/36E is designed for applications in prepaid telephone cards. The chip consists of an EEPROM memory of 221 bit, a ROM of 16 bits, a control/security unit and a special computing unit for chip authentication. The shaded blocks in the block diagram (Figure 3) contain the enhanced features of SLE 4436/36E compared to SLE 4406/06E.
