SLE44C42S

Features: *8-bit microcomputer in CMOS technology* Instruction set opcode compatible with standard SAB8051 processor* Software compatible with SLE 44C40* Dedicated, non-standard architecture with execution time less than half of standard SAB 8051 processor*15-Kbyte User ROM for application program...

product image

SLE44C42S Picture
See larger image
SeekIC No. : 004493100 Detail

SLE44C42S: Features: *8-bit microcomputer in CMOS technology* Instruction set opcode compatible with standard SAB8051 processor* Software compatible with SLE 44C40* Dedicated, non-standard architecture with ex...

SLE44C42S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SLE44C42S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 8-bit microcomputer in CMOS
   technology
* Instruction set opcode compatible with
   standard SAB8051 processor
* Software compatible with SLE 44C40
* Dedicated, non-standard architecture
   with execution time less than half of
   standard SAB 8051 processor
*15-Kbyte User ROM for application
   programs
* 2-Kbyte manufacturer ROM for Chip
   Management System (CMS)
* 4-Kbyte EEPROM as program/data
   memory
* 256-byte RAM
* Power saving sleep mode
* Clock freq. = int. freq.:
     1 to 5 MHz1) at 5 V ± 10 %,
     1 to 4 MHz at 3 V ± 10 %
* Contact configuration and serial
   interface in accordance with ISO7816
* Supply voltage range: 2.7 V to 5.5 V
* < 10 mA supply current at 5 MHz
* Temperature range: 25 to + 70  2)
* ESD protection larger than 4 kV


Pinout

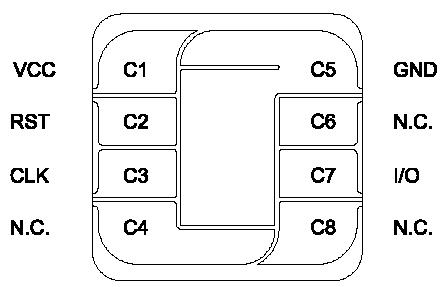

Connection Diagram


Description

SLE 44C42S is a member of the Infineon Technologies 44 security microcontroller family, especially designed for smart card applications. The devices fabricated in an Infineon Technologies proprietary CMOS technology, resulting in a significant reduction of die size compared to the SLE 44C40. New features such as low voltage operation, extended page mode and I/O routines offer additional performance required in applications like 3V SIM cards for GSM, banking, health care, security access or loyalty, while maintaining software compatibility to the SLE 44C40.
