Product Details

Description



Features:

*  Member of Eurochip Family with focus on state of the art security features
*  221 bit EEPROM and 16 bit ROM 104 bit user memory
    --64 bit Identification Area consisting of
      16 bit Manufacturer Code for unique identification of application
      SLE 6636:
         8 bit Manufacturer data, card issuer dependent (ROM)
         40 bit for personalization data of card issuer (PROM)
      SLE 6636E:
         48 bit for personalization data of card issuer (PROM)
   --40 bit Counter Area including 1 bit for personalization (PROM/EEPROM) 133 bit additional memory for advanced features
   --4 bit Counter Backup (anti-tearing flags)
   --1 bit initiation flag for Authentication Key 2
   --16 bit Data Area 1 for free user access
   --48 bit Authentication Key 1
   --either 48 bit Data Area 2 for user defined data or 48 bit Authentication Key 2
   --16 bit Data Area 3 for free user access
*  Counter with up to 33352 count units
   --Five stage abacus counter
   --Due to testing purposes a maximum of 21064 count units is guaranteed
*  Counter tearing protection fully compatible with Eurochip Family
   --Backup feature activated at choice by the terminal
*  High security authentication unit Individual card authentication based on Extended Authentication mode of Eurochip 2
   --Individual secret Authentication Key 1
   --Optional individual secret Authentication Key 2
   --Random number as challenge
   --Calculation of up to 16 bit response
   --Optional Response calculation with Cipher Block Chaining
   --Certification of the counter value
   --Calculation of a 16 bit response within 30 ms at a clock frequency of 100 kHz
*  Transport Code protection for delivery
*  Chip circuitry and chip layout optimised for high security against physical and electrical signal analysis


Pinout

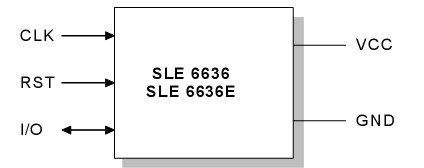

Connection Diagram


Description

SLE 6636/36E is designed for applications in prepaid telephone cards. The chip consists of an EEPROM memory of 221 bit, a ROM of 16 or 24 bits respectively, a control/security unit and a special computing unit for chip authentication.
