SLE 22C05S

Features: ` 16-bit microcomputer in 0.6 m CMOS technology` Instruction set opcode compatible with standard SAB 8051 processor` Enhanced 16-bit arithmetic` Additional powerful instructions optimized for chip card applications` Dedicated, non-standard architecture with execution time six times faste...

product image

SLE 22C05S Picture
See larger image
SeekIC No. : 004493033 Detail

SLE 22C05S: Features: ` 16-bit microcomputer in 0.6 m CMOS technology` Instruction set opcode compatible with standard SAB 8051 processor` Enhanced 16-bit arithmetic` Additional powerful instructions optimized ...

SLE 22C05S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SLE 22C05S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 16-bit microcomputer in 0.6 m CMOS technology
` Instruction set opcode compatible with standard SAB 8051 processor
` Enhanced 16-bit arithmetic
` Additional powerful instructions optimized for chip card applications
` Dedicated, non-standard architecture with execution time six times faster than standard SAB 8051 processor
` 7.5-Kbytes User ROM for application programs
` 512-bytes reserved ROM for Resource Management System (RMS) with intelligent write/erase routines
` 512-Bytes EEPROM as program/data memory
` 128 bytes RAM
` CRC Module
` Power saving sleep mode
` Clock freq. = int. freq.: 1 to 7.5 MHz
` Contact configuration and serial interface inaccordance with ISO 7816
` Supply voltage range: 2.7 V to 5.5 V
` Current consumption < 8 mA at 5 MHz and5.5 V
` Temperature range: -25 to +70°C
` ESD protection larger than 4 kV



Pinout

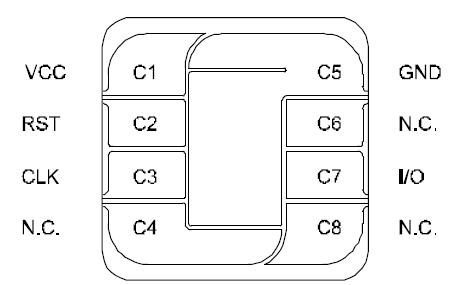

Connection Diagram


Description

SLE 22C05S is a member of the Infineon Technologies low cost security controller family in 0.6 m CMOS technology. The CPU provides the high efficiency of the SAB 8051 instruction set extended by additional powerful instructions together with enhanced performance, memory sizes and security features.

The controller IC SLE 22C05S offers 7.5 Kbytes of User-ROM, 128 bytes internal RAM and 512 Bytes EEPROM.

The CRC module SLE 22C05S allows the easy generation of checksums according to ISO 3309 (16-Bit- CRC). To minimize the overall power consumption, the chip card controller IC offers a sleep mode.
