Product Details

Description



Features:

• Configurable for PCI Bus Power Management Interface Specification
• Provides CompactPCI hot-swap functionality
• 3.3-V PCI core logic with universal PCI interface compatible with 3.3-V and 5-V PCI signaling environments
• 2.5-V serial link core logic compatible with the PCI6060 transceiver
• Supports 32-bit, 33-MHz PCI buses
• Provides internal two-tier arbitration for up to nine secondary bus masters and supports an external secondary bus arbiter
• Performs burst data transfers with pipeline architecture to maximize data throughput in both directions
• Independent read and write buffers for each direction
• Allows up to three delayed transactions in both directions
• Provides 10 secondary PCI clock outputs
• Predictable latency per PCI Local Bus Specification
• Propagates bus locking
• Secondary bus is driven low during reset
• Provides VGA/palette memory and I/O, and subtractive decoding options
• Advanced submicron, low-power CMOS technology


Pinout

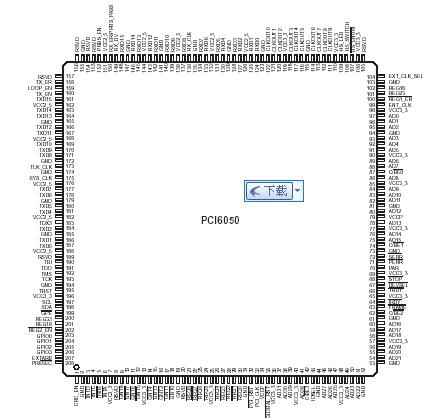

Connection Diagram


Description

The Texas Instruments PCI6050 device is a symmetric serialized PCI-to-PCI bridge that provides a high-performance solution for connecting two PCI buses via a high-speed serial cable medium.

The PCI6050 device has two major interfaces: a PCI interface and a transceiver (PCI6060) interface. The PCI6050 device communicates with a PCI bus and through a generic parallel interface to the PCI6060 transceiver. Two separate PCI6050 nodes are required, each with its own PCI6060 serial link, for a complete system. This four-chip solution provides a single, transparent PCI-to-PCI bridge, as illustrated in Figure 31.
