SM1126

Features: · 2.0 to 3.6 V supply voltage· Maximum of 16 melody selections (15 in ROM + 1 in SRAM)·Level hold playback mode· External reference clock input versions and builtin RC oscillator versions available, set by masterslice option (RC oscillator versions require an external resistor and capaci...

product image

SM1126 Picture
See larger image
SeekIC No. : 004493439 Detail

SM1126: Features: · 2.0 to 3.6 V supply voltage· Maximum of 16 melody selections (15 in ROM + 1 in SRAM)·Level hold playback mode· External reference clock input versions and builtin RC oscillator versions ...

SM1126 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM1126
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 2.0 to 3.6 V supply voltage

· Maximum of 16 melody selections (15 in ROM + 1 in SRAM)

·Level hold playback mode

· External reference clock input versions and builtin RC oscillator versions available, set by masterslice option (RC oscillator versions require an external resistor and capacitor).
· Selectable clock frequencies (fixed for all melodies)
• External clock input versions (6 frequencies)
- 32.768 kHz system: 32.768, 65.536 and 131.072 kHz
- 38.4 kHz system: 38.4, 76.8 and 153.6 kHz
• Built-in RC oscillator versions (1 frequency)
- 131.072 kHz

· 2-pin serial data melody selection and 1-pin melody playback control

· Parity check function

· Delivery pattern alarm

· Power save function
• External clock input versions Clock gating in non-play modes
• Built-in RC oscillator versions Oscillator stopped in non-play modes


Pinout

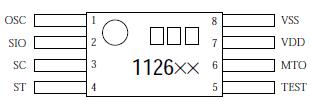

Connection Diagram


Specifications

Characteristic Symbol Condition Rating Unit
Supply Voltage VDD- VSS   -0.3 to 5.0 V
Input Voltage VIN   VSS- 0.2 to VDD + 0.2 V
Soldering temperature Tsld   255 oC
Soldering time tsld   10 s
Power Dissipation PD   100 mW
Storage Temperature Tstg   -40 to 125 oC



Description

The SM1126 Series are melody ICs for use in mobile telecommunications equipment. A maximum of 15 melodies can be stored in programmable ROM and one in built-in read/write SRAM.
