Product Details

Description



Features:

 Requires few external components
 1.2 to 3.6V wide operating voltage range
Low power consumption
3 melody modes (bonding option)
Oscillator stop function in non-play mode
Power saving pull-down resistor built-in
RC oscillator circuit
Power-ON initialization function
Wide pitch dynamic range (G3 to D7)
8-pin SOP package

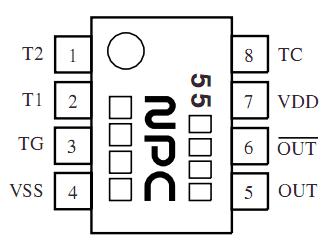

Pinout

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Supply voltage range

VDD−VSS



−0.3 to 5.0

V

Input voltage range

VIN



VSS − 0.2 to VDD + 0.2

V

Operating temperature range

Topr



−20 to 80

Storage temperature range

Tstg



−55 to 125
