Product Details

Description



Features:

• 1,048,576 double word x 32bit / 2,097,152 word x 16bit electrically switchable configuration
• Single +3.3V power supply
• Access time 100ns Page mode access time 30ns
• Input / Output TTL compatible
• Three-state output
• Packages

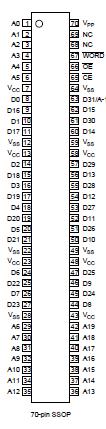

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Condition
Value
Unit
Operating temperature under bias
Topr
-
0 to 70
°C
Storage temperature
Tstg
-55 to 125
°C
Input voltage
VI
relative to VSS
-0.5 to VCC + 0.5
V
Output voltage
VO
-0.5 to VCC + 0.5
V
Power supply voltage
VCC
-0.5 to 7
V
Program power supply voltage
VPP
-0.5 to 12.5
V
Power dissipation per package
PD
-
1.0
W



Description

The MSM27V3255CZ is a 32Mbit electrically Programmable Read-Only Memory with page mode. Its configuration can be electrically switched between 1,048,576 double word x 32bit and 2,097,152 word x 16bit. The MSM27V3255CZ operates on a single +3.3V power supply and is TTL compatible.
The MSM27V3255CZ provides Page mode which can greatly reduce the read access time. Since the MSM27V3255CZ operates asynchronously , external clocks are not required , making this device easy-to-use. The MSM27V3255CZ is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS double silicon gate technology and is offered in 70-pin SSOP package.
