SM3317-L(B)

Features: • 3mm(T-1) all plastic mold type• Available on tape and reelPinoutSpecifications Characteristic Symbol Rating Unit Power dissipation PD 75 mW Forward current IF 30 mA *1Peak forward current IFP 50 mA Reverse voltage VR 4 V Operating temperat...

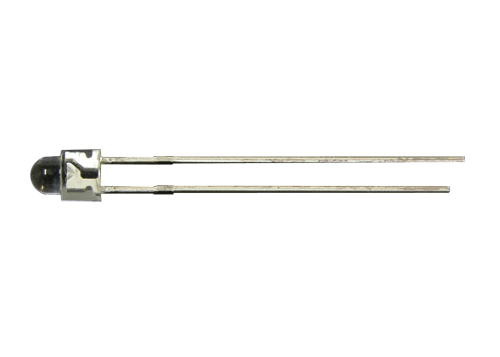

product image

SM3317-L(B) Picture
See larger image
SeekIC No. : 004493699 Detail

SM3317-L(B): Features: • 3mm(T-1) all plastic mold type• Available on tape and reelPinoutSpecifications Characteristic Symbol Rating Unit Power dissipation PD 75 mW Forward current ...

SM3317-L(B) Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM3317-L(B)
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3mm(T-1) all plastic mold type
• Available on tape and reel




Pinout






Specifications

Characteristic Symbol Rating Unit
Power dissipation PD 75 mW
Forward current IF 30 mA
*1Peak forward current IFP 50 mA
Reverse voltage VR 4 V
Operating temperature range Topr -25∼85
Storage temperature range Tstg -30∼100
*2Soldering temperature Tsol 260 for 10 seconds
*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Keep the distance more than 2.0mm from PCB to the bottom of LED package




Description

This lamp SM3317-L(B) is used as a indigator for the Electric home appliance. - Refrigerator, Washing machine, Air conditioner & Humidifier, Audio, VTR, Television, Computer, Vending machine, etcs. It has been also used as a light source at the lighting fixtures.
