Features:

 ` Operating supply voltage range
      • 3V operation: 2.7 to 3.6V
      • 5V operation: 4.5 to 5.5V
 ` 4MHz to 70MHz operating frequency range (Oscillation frequency is settable by external components)
 ` 40 to 85°C operating temperature range
 ` Oscillator capacitors CG, CD built-in(BN*H version only)
 ` Cutoff frequency setting using external feedbackresistor Rfo
 ` Output drive capability
      • 8mA (VDD= 2.7V)
      • 16mA (VDD= 4.5V)
 ` Output three-state function built-in
      • High impedance output in standby mode
 ` CMOS output duty level (1/2VDD)
 ` Molybdenum-gate CMOS process
 ` Package: SOT23-6 (SM5023***H)


Application

 · DIP-type crystal oscillator modules


Pinout

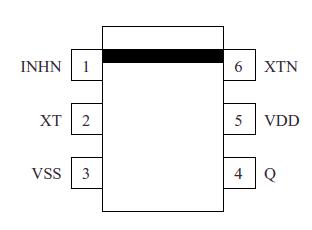

Connection Diagram


Specifications

Parameter Symbol
Rating
Unit
Supply voltage range VDD
-0.5 to 7.0
V
Input voltage range VIN
-0.5 to VDD + 0.5
V
Output voltage range VOUT
-0.5 to VDD + 0.5
V
Operating temperature range Topr
- 40 to + 85
Strage temperature ranges TSTG
-55 to 125
Output current IOUT
20
mA
Power dissipation pD
250
mW



Description

The SM5023 series are 3rd overtone crystal oscillator module ICs. They feature built-in oscillator capacitors with excellent frequency response. As cutoff frequency can be configured by using an external feedback resistor R fo , a favorable 3rd overtone oscillation can be realized with a few external components. The oscillator circuit characteristics are optimized for a 3rd overtone oscillation by round blank. They also feature a built-in output buffer with high output drive capability and are available in miniature 6-pin package, making them ideal as DIP-type crystal oscillators.
