General Description
SM5032D General Description
SM5032C/D is an infrared remote control decoder utilizing COMOS technology, paired with SM5021 for transmitter. The remote control system is capable of controlling eight functions and CP1 to CP6 can multi-decode. There is an option for two toggle signal outputs in these data control functions.
Also there are two custom codes for user to separate different products.
SM5032D Maximum Ratings
| Parameter | Symbol | Test conditions |
Ratings |
Unit |
| Supply Voltage | VDD-VSS |
-0.3~6 |
V | |
| Input Voltage | VI |
VSS-0.3~VDD+0.3 |
V | |
| Output Voltage | Vo |
VSS-0.3~VDD+0.3 |
V | |
| Maximum Power Consumption | Pa | VDD-VSS=5V |
500 |
mW |
| Operating Temperature | Topr |
-20~70 |
||
| Storage Temperature | Tstg |
-40~125 |
SM5032D Features
· Wide operation voltage range, 2.4V to 6V
· Infrared remote control receiver
· Two custom code to separate products
· Eight control functions for continuous signal
· Mulit-key control outputs
· Two toggle signal can be optioned in outputs
· A single terminal type oscillator by means of RC is provided
· Low power consumption
· High noise immunity
· 14 pin DIP or SO package
· Infrared remote control receiver
· Two custom code to separate products
· Eight control functions for continuous signal
· Mulit-key control outputs
· Two toggle signal can be optioned in outputs
· A single terminal type oscillator by means of RC is provided
· Low power consumption
· High noise immunity
· 14 pin DIP or SO package
SM5032D Typical Application
· Consumer Products Remote Control
· Toy Remote Control
· Audio Remote Control
· Toy Remote Control
· Audio Remote Control

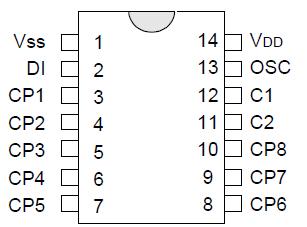

SM5032D Connection Diagram
SM5032D
PDF/DataSheet Download
- Datasheet: SM5032D
- File Size: 36433 KB
- Manufacturer: SAMHOP [SamHop Microelectronics Corp.]
- Click here to Download
