General Description
SM5168BAV General Description
The SM5168BAV is a PLL ICs fabricated in NPC's Molybdenum-gate CMOS process. This is designed for use in transmitter/receiver stages in mobile telephones and similar applications.
And it built in LD pin of lock detect signal output.
SM5168BAV Features
· 2.7 to 3.3 V operation
· 300 MHz maximum operating frequency (VDD = 2.7 V)
· Low power consumption
· Charge pump outputs for passive filter
· Lock detect pin
· Power-save pin for reduced power dissipation
·-30 to 85°C operating temperature range
· 8-pin VSOP
· Molybdenum-gate CMOS process
· 300 MHz maximum operating frequency (VDD = 2.7 V)
· Low power consumption
· Charge pump outputs for passive filter
· Lock detect pin
· Power-save pin for reduced power dissipation
·-30 to 85°C operating temperature range
· 8-pin VSOP
· Molybdenum-gate CMOS process
SM5168BAV Typical Application
· Mobile communications
· PHS-type portable telephones
· Similar applications
· PHS-type portable telephones
· Similar applications

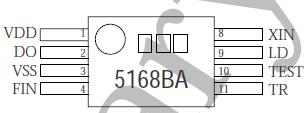

SM5168BAV Connection Diagram
SM5168BAV
