SM5866AS

Features: `Mono-channel multi-level D/A converter`High performance analog characteristics - DSD mode (typical values) THD + N: 109dB (0.00036%) D.R: 115dB - PCM mode (typical values) THD+N: 106dB (0.00050%) D.R: 112dB`2 selectable DSD digital filters`PCM input mode - 24-bit, MSB-first, right-justi...

product image

SM5866AS Picture
See larger image
SeekIC No. : 004493918 Detail

SM5866AS: Features: `Mono-channel multi-level D/A converter`High performance analog characteristics - DSD mode (typical values) THD + N: 109dB (0.00036%) D.R: 115dB - PCM mode (typical values) THD+N: 106dB (0...

SM5866AS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM5866AS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Mono-channel multi-level D/A converter
`High performance analog characteristics
   - DSD mode (typical values)
   THD + N: 109dB (0.00036%)
   D.R: 115dB
   - PCM mode (typical values)
   THD+N: 106dB (0.00050%)
   D.R: 112dB
`2 selectable DSD digital filters
`PCM input mode
   - 24-bit, MSB-first, right-justified
   - 8-times or 4-times oversampling of fs = 16k to 192kHz
`System clock (CKI)
   Maximum operating frequency: f CKI(max)
   -37.0MHz (note 1)
   -45.4MHz (note 2)
`DSD mode fs = f CKI /512
   -typ. fs = 44.1kHz
   -max. fs = 52.7kHz (note 1)
   - max. fs = 88.7kHz (note 2)
`PCM mode system clock
   - 192/256/384/512/768fs
`Operating voltage: 4.5 to 5.5V
`Operating temperature: 40 to 85°C
`Package: 28-pin SOP
`Molybdenum-gate CMOS process


Pinout

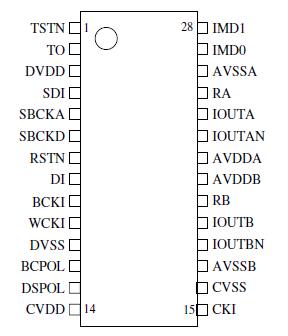

Connection Diagram


Description

The SM5866AS is a D/A converter compatible with both the DSD SACD signal format and the PCM CD/DVD-Audio and similar formats. DSD employs a 1-bit data stream, from a high-orderconversion at 64fs (fs = 44.1kHz), that contains high-level quantization noise in the high-frequency band above 20kHz. The SM5866AS, in DSD reproduction, has a DSD-dedicated FIR digital filter that attenuates the DSD quantization noise in the digital domain, and the resulting multi-level signal is D/A converted. In PCM reproduction, an oversampled PCM signal input, provided using a SM5847AF or similar digital filter, is converted to a multi-level signal by the 3rdorder noise shaper and then the multi-level signal is D/A converted.
