SM5879AV

Features: ` 2.7 to 3.3 V operating supply voltage`44.1 kHz sampling frequency`16.9344 MHz (384fs) system clock`Built-in crystal oscillator circuit`16-bit, MSB first, rear-packed serial data input format (£ 64 fs bit clock)`8-times oversampling digital filter -32 dB stopband attenuation - +0....

product image

SM5879AV Picture
See larger image
SeekIC No. : 004493921 Detail

SM5879AV: Features: ` 2.7 to 3.3 V operating supply voltage`44.1 kHz sampling frequency`16.9344 MHz (384fs) system clock`Built-in crystal oscillator circuit`16-bit, MSB first, rear-packed serial data input fo...

SM5879AV Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM5879AV
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 2.7 to 3.3 V operating supply voltage
`44.1 kHz sampling frequency
`16.9344 MHz (384fs) system clock
`Built-in crystal oscillator circuit
`16-bit, MSB first, rear-packed serial data input format (£ 64 fs bit clock)
`8-times oversampling digital filter
   -32 dB stopband attenuation
   - +0.05 to -0.05 dB passband ripple
`Deemphasis filter operation
   - 36 dB stopband attenuation
   - -0.09 to +0.23 dB deviation from ideal deemphasis filter characteristics
` Attenuator
   - 7-bit attenuator (128 steps) set by microcontroller

`Soft mute function set by parallel setting
   - (approximately 1024/fs total muting time)
`Mono setting
   - Left or right channel mono selectable by microcontroller

` Built-in infinity-zero detection circuit

`, two-channel D/A converter
   - 3rd-order noise shaper
   -32fs oversampling

` Built-in 3rd-order post-converter low-pass filters

`24-pin VSOP package

` Molybdenum-gate CMOS process


Pinout

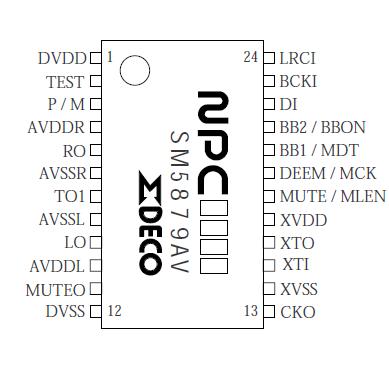

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Supply voltage range
DVDD, AVDD, XVDD
-0.3 to 7.0
V
Input voltage range1
VIN1
DVSS - 0.3 to DVDD + 0.3
V
XTI input voltage range
VIN
XVSS - 0.3 to XVDD + 0.3
V
Storage temperature range
Tstg
-55 to 125
°C
Power dissipation
PD
250
mW
Soldering temperature
Tsld
255
°C
Soldering time
tsld
10
s
1. Pins TEST, P/ M, MUTE/ MLEN, DEEM/ MCK, BB1/ MDT, BB2/ BBON, DI, BCKI, LRCI Also applicable during supply switching.


Description

The SM5879AV is a 3rd-order, two-channel D/A convertor LSI for digital audio reproduction equipment. This device incorporate NPC's molybdenumgate CMOS technology and incorporates an 8-times oversampling digital filter and analog 3rd-order post-converter low-pass filters.

The SM5879AV also incorporates built-in digital bass boost and deemphasis filters, an attenuator, and soft mute function. Low-voltage operation is also supported.

This device SM5879AV features a compact 24-pin VSOP package and a D/A converter that provides both compact size and low power consumption.
