General Description
SM6453AB Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Supply voltage | VDD1, VDD2 | −0.3 to 4.6 | V |
| VSS | 0 | V | |
| Digital system input voltage | VIND | DVSS−0.3 to VDD1+0.3 | V |
| Analog system input voltage | VINA | AVSS−0.3 to VDD2+0.3 | V |
| Storage temperature | TSTG | −55 to 125 | °C |
SM6453AB Features
2 stereo system inputs, 1 output system
12mW + 12mW output (standard, 16Ωload, 2.0Vsupply voltage)
Attenuation function
• 1.0dB step width
• 80-step
• + 12 to 68dB variable range
Mute function
Low current consumption (2.3mA total, 2.4V supply voltage)
12dB voltage gain
Bass boost function (2 boost characteristics controlled by external RC network)
Auto gain control function (AGC)
Beep sound input/output circuit
Power-down function
1.9 to 3.6V operating supply voltage range
Silicon-gate CMOS process
12mW + 12mW output (standard, 16Ωload, 2.0Vsupply voltage)
Attenuation function
• 1.0dB step width
• 80-step
• + 12 to 68dB variable range
Mute function
Low current consumption (2.3mA total, 2.4V supply voltage)
12dB voltage gain
Bass boost function (2 boost characteristics controlled by external RC network)
Auto gain control function (AGC)
Beep sound input/output circuit
Power-down function
1.9 to 3.6V operating supply voltage range
Silicon-gate CMOS process

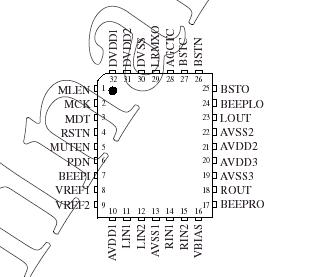

SM6453AB Connection Diagram
SM6453AB
