SM7183

Features: · Built-in adjustable OSC.· Built-in power on reset circuit.· Built-in 30KBits SRAM for delay control.· Adjustable delay time setting: Echo Mode: 20.5ms ~ 163.8ms Surround Mode: 4.1ms ~ 41.0ms (Based on 6MHz OSC)· Direct control & Micro-processor control interface.· Auto muting duri...

product image

SM7183 Picture
See larger image
SeekIC No. : 004494002 Detail

SM7183: Features: · Built-in adjustable OSC.· Built-in power on reset circuit.· Built-in 30KBits SRAM for delay control.· Adjustable delay time setting: Echo Mode: 20.5ms ~ 163.8ms Surround Mode: 4.1ms ~ 4...

SM7183 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SM7183
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Built-in adjustable OSC.
· Built-in power on reset circuit.
· Built-in 30KBits SRAM for delay control.
· Adjustable delay time setting: Echo Mode: 20.5ms ~ 163.8ms
                                                    Surround Mode: 4.1ms ~ 41.0ms (Based on 6MHz OSC)
· Direct control & Micro-processor control interface.
· Auto muting during power up and change mode.


Application

·  VCD
·  Karaok
·  TV
·  Audio System
·  Car Stereo


Pinout

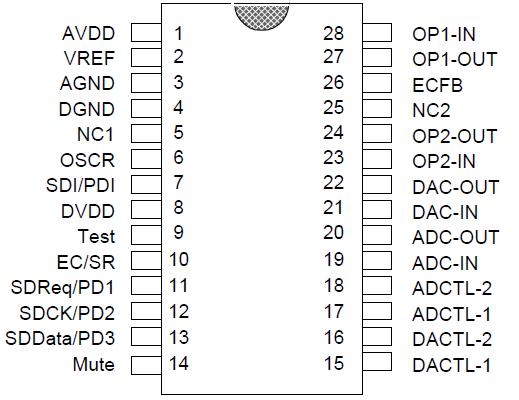

Connection Diagram


Specifications

Symbol
 Description Limits Unit
VCC Supply voltage 6.5 V
ICC Supply current 100 mA
Pd Power dissipation 1.7 W
Topr Operating temperature -20~75
Tstg Storage temperature -25~125



Description

SM7183 is an Audio Echo Processor using CMOS Technology. It has built-in AD/DA and 30KBits SRAM for time delay. Three sample rate selection and eight delay time selection. Many combination to fit your applications.
