Purchase SM7186, In-stock SM7186 From SeekIC.
MFG:SM Package Cooled:2000
Part Number: SM7186
MFG: SM
Package Cooled: 2000
Description: SM7186 is an Audio Echo Processor using CMOS Technology. It has built-in AD/DA and 48KBits SRAM for ti...
- Table of contents:
SM7186
-
Suppliers
DataSheet
General Description
SM7186 General Description
SM7186 is an Audio Echo Processor using CMOS Technology. It has built-in AD/DA and 48KBits SRAM for time delay. External Resister adjust large range oscillation frequency and control delay time. Many combination to fit your applications.
SM7186 Maximum Ratings
|
Symbol |
Decription |
Limits |
Unit |
|
Vcc |
Supply voltage |
6.5 |
V |
|
Icc |
Supply current |
100 |
mA |
|
Pd |
Power dissipation |
1.7 |
W |
|
Topr |
Operation temperature |
-20 ~ 75 |
|
|
Tstg |
Storage temperature |
-20 ~ 125 |
SM7186 Features
* Built-in adjustable OSC.
* Built-in power on reset circuit.
* Built-in 48KBits SRAM for delay control.
* Adjustable delay time setting:30ms ~ 700ms
* Low operating current.
SM7186 Typical Application
* VCD
* Karaoke
* TV
* Audio System
* Car Stereo
* VCR
* Karaoke
* TV
* Audio System
* Car Stereo
* VCR

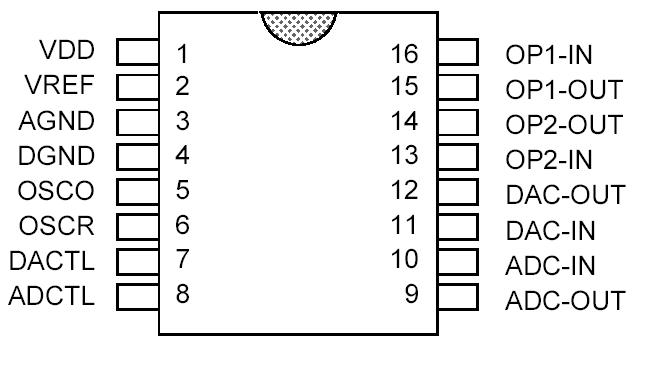

SM7186 Connection Diagram
SM7186
PDF/DataSheet Download
- Datasheet: SM7186
- File Size: 189464 KB
- Manufacturer: SAMHOP [SamHop Microelectronics Corp.]
- Click here to Download
