Purchase SM7346A, In-stock SM7346A From SeekIC.
Part Number: SM7346A
Description: The SM7346A is 6 channels electronic volume controlled by 3-wire serial data. The IC is suitable for u...
- Table of contents:
SM7346A
-
Suppliers
DataSheet
General Description
SM7346A General Description
The SM7346A is 6 channels electronic volume controlled by 3-wire serial data. The IC is suitable for use in DVD systems and AV.
SM7346A Maximum Ratings
| Symbol | Parameter | Conditions |
Ratings |
Unit |
| Vsupply | Supply Voltage | AVDD-AVSS |
16.0 |
V |
| Pd | Power dissipation | Ta25 |
1000 |
mW |
| K | Thermal derating | Ta>25 *standard board |
10 |
mW/ |
| Topr | Operating temperature |
-20~+75 |
||
| Tstg | Storage temperature |
-40~+125 |
SM7346A Features
`4 Output ports
`Built-in microcomputer interface circuit controlled by 16-bit serial data.
`Electronic volume Volume level: 0dB~-95dB, - dB(1dB/step)
`Tone control Bass/Treble, 0dB~+14dB(2dB/step)
`Built-in microcomputer interface circuit controlled by 16-bit serial data.
`Electronic volume Volume level: 0dB~-95dB, - dB(1dB/step)
`Tone control Bass/Treble, 0dB~+14dB(2dB/step)
SM7346A Typical Application
· DVD Receivers
· Home Audio Equipment
· AV
· Home Audio Equipment
· AV

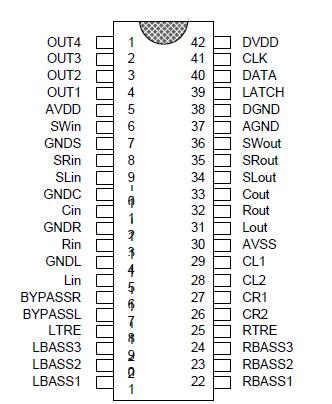

SM7346A Connection Diagram
SM7346A
PDF/DataSheet Download
- Datasheet: SM7346A
- File Size: 318830 KB
- Manufacturer: SAMHOP [SamHop Microelectronics Corp.]
- Click here to Download
