Part Number: SM7347
Description: The SM7347 is 6 channels electronic volume controlled by 3-wire serial data. The IC is suitable for us...
- Table of contents:
SM7347
-
Suppliers
DataSheet
General Description
SM7347 General Description
The SM7347 is 6 channels electronic volume controlled by 3-wire serial data. The IC is suitable for use in DVD systems and AV.
SM7347 Maximum Ratings
| Symbol | Parameter | Conditions |
Ratings |
Unit |
| Vsupply | Supply Voltage | AVDD-AVSS |
16.0 |
V |
| Pd | Power dissipation | Ta25 |
1000 |
mW |
| K | Thermal derating | Ta>25 *standard board |
10 |
mW/ |
| Topr | Operating temperature |
-20~+75 |
||
| Tstg | Storage temperature |
-40~+125 |
SM7347 Features
` 4 Output ports
` Built-in microcomputer interface circuit controlled by 16-bit serial data.
` Electronic volume Volume level......0dB~-79dB, - dB(1dB/step)
` Built-in microcomputer interface circuit controlled by 16-bit serial data.
` Electronic volume Volume level......0dB~-79dB, - dB(1dB/step)
SM7347 Typical Application
· DVD
· Home Audio equipment
· AV
· Home Audio equipment
· AV

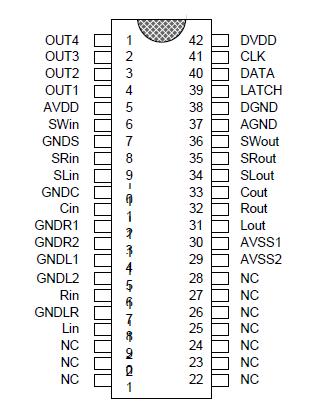

SM7347 Connection Diagram
SM7347
PDF/DataSheet Download
- Datasheet: SM7347
- File Size: 223450 KB
- Manufacturer: SAMHOP [SamHop Microelectronics Corp.]
- Click here to Download
