Product Details

Description

Features:

· High current gain
· Low collector-emitter saturation voltage
· Two (galvanic) internal isolated NPN/PNP
Transistors in one package

Pinout

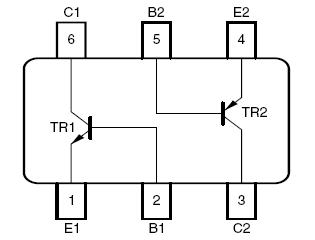

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Collector-emitter voltage	V_CEO	40	V
Collector-base voltage	V_CBO	40	V
Emitter-base voltage	V_EBO	5	V
DC collector current	I_C	200	mA
Total power dissipation, TS = 105 °C	P_tot	330	mW
Junction temperature	T_j	150	°C
Storage temperature	T_stg	-65...150	°C
