Product Details

Description

Features:

Complete Data Acquisition System
`10-Bit A/D Converter Resolution
`75µs Acquisition plus Conversion Time
`Alarm Limits for Each Input Channel
`Auto-Increment of Input Channels
`Two Wire I2C Serial Data Interface
`System Management Bus (SMBus) Compatible
`Auto-Monitor with SMBALERT Output
`Low Quiescent Current of 50µA
`Wide Supply Voltage Range: 2.7V to 5.5V
SMD1102
`2-Channel Analog Input
`External Voltage Reference Input Provided for
Absolute Measurements
SMD1103
`3-Channel Analog Input
`Reference Voltage Input for the A/D Converter
is Connected to VDD for Ratiometric Measurements
SMD1113
`Extended I2C Operation
`3-Channel Analog Input
`External Voltage Reference Input Provided
for Absolute Measurements

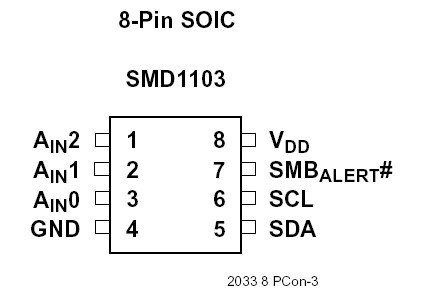

Pinout

Connection Diagram

Specifications

Temperature Under Bias ........................ 55°C to 125°C
Storage Temperature ............................ 65°C to 150°C
Lead Solder Temperature (10 seconds) ..................300 °C
Terminal Voltage with Respect to GND:
All ....................................................................... 2V to 7V
*COMMENT
Stresses listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions outside those listed in the operational sections of this specification is not implied. Exposure to any absolute maximum rating for extended periods may affect device performance and reliability.
