SMHF

Features: • Fully qualified to Class H or K• Radiation hardened• 55° to +125°C operation• 16 to 40 VDC input• Fully Isolated• Red hard optocoupler feedback• Fixed frequency, 550 kHz typical• Topology Single Ended Forward• Transient protection ...

product image

SMHF Picture
See larger image
SeekIC No. : 004495050 Detail

SMHF: Features: • Fully qualified to Class H or K• Radiation hardened• 55° to +125°C operation• 16 to 40 VDC input• Fully Isolated• Red hard optocoupler feedback•...

SMHF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SMHF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fully qualified to Class H or K
• Radiation hardened
• 55° to +125°C operation
• 16 to 40 VDC input
• Fully Isolated
• Red hard optocoupler feedback
• Fixed frequency, 550 kHz typical
• Topology Single Ended Forward
• Transient protection 50 V/120 ms
• Inhibit function
• Sync function
• Indefinite short circuit protection
• Undervoltage lockout
• Up to 84% efficiency

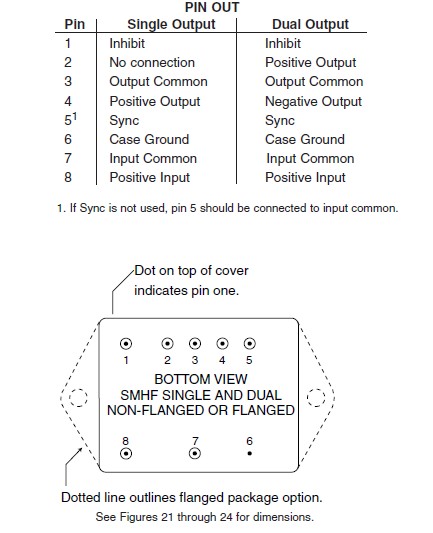

Pinout

Connection Diagram


Specifications

Input Voltage .....................................................................16 to 40 VDC
Power Dissipation (Pd)..................................................................... 8 W
Output Power................................ 12 to 15 watts depending on model
Lead Soldering Temperature (10 sec per lead)............................ 300°C
Storage Temperature Range (Case) ..........................65°C to +150°C


Description

The SMHF Series™ of 28 V DC/DC converters offers a wide input voltage range of 16 to 40 volts and up to 15 watts of output power. The units are capable of withstanding short term transients up to 50 volts. The package is a hermetically sealed, seam-welded metal case. Flanged and non-flanged models are available.
