SMJ320LC549

` Processed to MIL-PRF-38535 (QML)
` Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Memory Bus
` 40-Bit Arithmetic Logic Unit (ALU) Including a 40-Bit Barrel Shifter and Two Independent 40-Bit Accumulators
` 17- x 17-Bit Parallel Multiplier Coupled to a 40-Bit Dedicated Adder for Non-Pipelined Single-Cycle  ultiply/Accumulate (MAC) Operation
` Compare, Select, and Store Unit (CSSU) for the Add/Compare Selection of the Viterbi Operator
` Exponent Encoder to Compute an Exponent Value of a 40-Bit Accumulator Value in a Single Cycle
` Two Address Generators With Eight Auxiliary Registers and Two Auxiliary Register Arithmetic Units (ARAUs)
` Data Bus With a Bus Holder Feature
` Address Bus With a Bus Holder Feature
` Extended Addressing Mode for 8M * 16-Bit Maximum Addressable External Program Space
` 192K x 16-Bit Maximum Addressable Memory Space (64K Words Program, 64K Words Data, and 64K Words I/O)
` On-Chip ROM with Some Configurable to Program/Data Memory
` Dual-Access On-Chip RAM
` Single-Access On-Chip RAM
` Single-Instruction Repeat and Block-Repeat Operations for Program Code
` Block-Memory-Move Instructions for Better Program and Data Management
` Instructions With a 32-Bit Long Word Operand
` Instructions With Two- or Three-Operand Reads
` Arithmetic Instructions With Parallel Store and Parallel Load
` Conditional Store Instructions
` Fast Return From Interrupt
` On-Chip Peripherals
Software-Programmable Wait-State Generator and Programmable Bank Switching
On-Chip Phase-Locked Loop (PLL) Clock Generator With Internal Oscillator or External Clock Source
Time-Division Multiplexed (TDM) Serial Port
Buffered Serial Port (BSP)
8-Bit Parallel Host-Port Interface (HPI)
One 16-Bit Timer
External-Input/Output (XIO) Off Control to Disable the External Data Bus, Address Bus and Control Signals
` Power Consumption Control With IDLE1, IDLE2, and IDLE3 Instructions With Power-Down Modes
` CLKOUT Off Control to Disable CLKOUT
` On-Chip Scan-Based Emulation Logic, IEEE Std 1149.1† (JTAG) Boundary Scan Logic
` 16.7-ns Single-Cycle Fixed-Point Instruction Execution Time (60 MIPS) for 3.3-V Power Supply
` Packaging
164-Pin Ceramic Quad Flat Package (HFG)
` 55°C to 115°C Operating Temperature Range, QML Processing

Supply voltage, DV_DD and CV_DD‡ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 4.6 V
Input voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . 0.3 V to 4.6 V
Output voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 4.6 V
Thermal resistance, Junction-to-Case, _JC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.82°C/W
Operating case temperature range, T_C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 55°C to 115°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . 55°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. ‡ All voltage values are with respect to V_SS.

The SMJ320LC549 fixed-point, digital signal processor (DSP) (hereafter referred to as the 549) is based  on an advanced modified Harvard architecture that has one program memory bus and three data memory buses. The processor also provides an arithmetic logic unit (ALU) that has a high degree of parallelism, application-specific  hardware logic, on-chip memory, and additional on-chip peripherals. The 549 also utilizes a highly specialized instruction set, which is the basis of its operational flexibility and speed.

Separate program and data spaces allow simultaneous access to program instructions and data, providing the high degree of parallelism. Two reads and one write operation can be performed in a single cycle. Instructions with parallel store and application-specific instructions can fully utilize this architecture. In addition, data can be ransferred between data and program spaces. Such parallelism supports a powerful set of arithmetic, logic, and bit-manipulation operations that can all be performed in a single machine cycle. In addition, the SMJ320LC549 includes the control mechanisms to manage interrupts, repeated operations, and function calls.

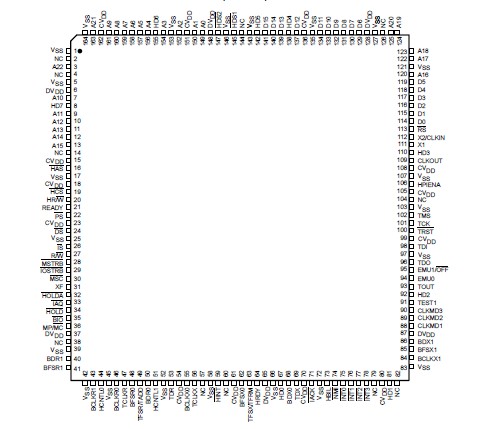

This data sheet contains the pin layouts, signal descriptions, and electrical specifications for the SMJ320LC549 DSP. For additional information, see the TMS320C54x, TMS320LC54x, TMS320VC54x Fixed-Point Digital Signal Processors data sheet (literature number SPRS039). The SPRS039 is considered a family functional overview and should be used in conjunction with this data sheet.
