SMS1242

Features: • Supply voltage monitor- Nominal VRST of 2.45V, 2.65V, 2.95V, 4.45V, 4.55V or 4.65V- RESET# Outputs Guaranteed true at VCC = 1V- 150ms Reset Delay Time• Second voltage monitor- VSENSE Input- 1.25V threshold ±1%• Manual Reset Input• Includes 16k-bits nonvolatile m...

product image

SMS1242 Picture
See larger image
SeekIC No. : 004495514 Detail

SMS1242: Features: • Supply voltage monitor- Nominal VRST of 2.45V, 2.65V, 2.95V, 4.45V, 4.55V or 4.65V- RESET# Outputs Guaranteed true at VCC = 1V- 150ms Reset Delay Time• Second voltage monitor...

SMS1242 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SMS1242
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply voltage monitor
- Nominal VRST of 2.45V, 2.65V, 2.95V, 4.45V, 4.55V or 4.65V
- RESET# Outputs Guaranteed true at VCC = 1V
- 150ms Reset Delay Time
• Second voltage monitor
- VSENSE Input
- 1.25V threshold ±1%
• Manual Reset Input
• Includes 16k-bits nonvolatile memory
- Industry standard 2-wire serial interface

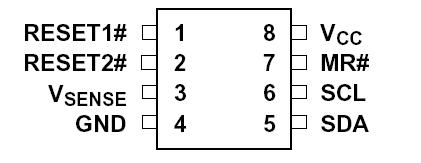

Pinout

Connection Diagram


Specifications

Temperature Under Bias . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 125°C
Storage Temperature  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Terminal Voltage (With Respect to Ground) . . . . . . . . . . . . . . . . . .0.3V to 6V
Lead Solder Temperature (10 secs) . . . . . . . . . . . . . . . . . . . . . . . . . . . 300°C


Description

The SMS1242 microprocessor supervisory circuit reduces the complexity and number of components required to monitor the supply voltage in +5V, +3V and +2.5V systems. The SMS1242 will significantly improve system reliability and accuracy when compared to implementing the same functions with discrete components.

The SMS1242 provides reset output during power-up, power-down, and brown-out conditions. It has a 1.25V threshold input detector for power-fail warning, low battery detection, or monitoring a secondary power supply. The part also integrates a separate active low manual reset input.

SMS1242 also has 16k-bits of nonvolatile memory accessible over an industry standard 2-wire serial interface.
