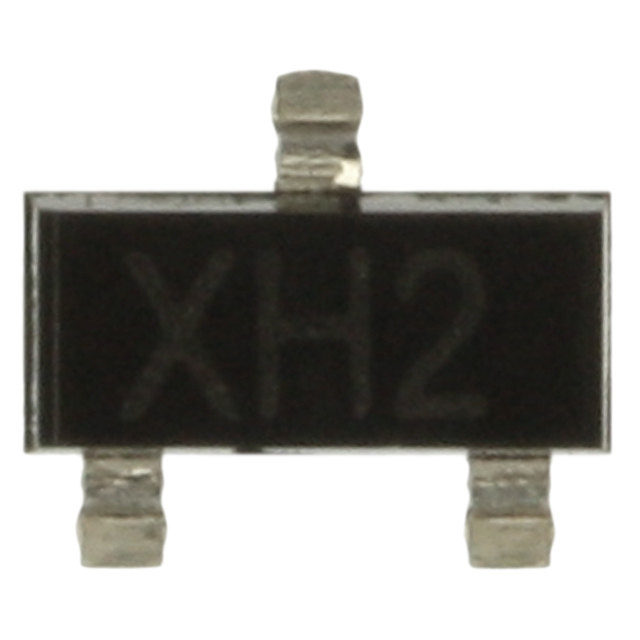

SMS7621-006

These low cost, surface mountable plastic packaged silicon mixer Schottky diodes are designed for RF and microwave
mixers and detectors.They include low barrier diodes and zero bias detectors, combining Alpha's advanced semiconductor technology with low cost packaging techniques. All diodes are 100% DC tested and deliver tight parameter distribution,minimizing performance variability.They are available in SC-70, SC-79, SOD-323, SOT-23 and SOT-143 packages.Wiring configurations include singles, common cathode, series pairs and unconnected pairs. Applications include low noise receivers used in high sensitivity ID tags, wireless systems, radio designs and may be used at frequencies to 10 GHz.SPICE model parameters are included as a design tool.
