Features:

• 100K Compatible
• TTL Clock and ECL Control Inputs
• Noninverting Outputs
• Flow-Through Architecture Optimizes PCB Layout
• Center Pin VCC, VEE, and GND
Configurations Minimize High-Speed
Switching Noise
• Package Options Include "Small Outline"
Packages and Standard Plastic DIPs
• ESD Protection Exceeds 2000 V Per
MIL-STD-883C, Method 3015

Pinout

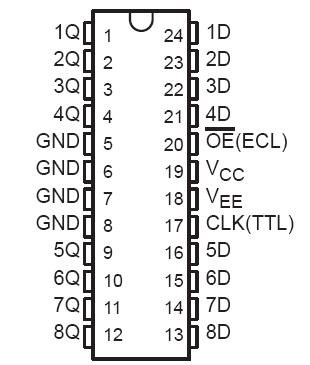

Connection Diagram

Specifications

Supply voltage range, V_CC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Supply voltage range, V_EE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 V to 0 V
Input voltage range (T_TL) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 V to 7 V
Input voltage range (E_CL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VEE to 0 V
Input current range (T_TL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 mA to 5 mA
Current out of any output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Operating ambient temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 85°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: The TTL input voltage ratings may be exceeded provided the input current ratings are observed.

Description

This SN100KT5578 octal TTL-to-ECL translator is designed to provide efficient translation between a TTL signal environment and a 100K ECL signal environment. This device is designed specifically to improve the performance and density of TTL-to-ECL CPU/ bus-oriented functions such as memoryaddress drivers,clock drivers, and bus-oriented receivers and transmitters.

The eight flip-flops of the SN100KT5578 are edge-triggered D-type flip-flops. On the positive transition of the clock, the Q outputs are set to the logic levels that were set up at the D inputs.
The output-control input OE does not affect the internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are off.

The SN100KT5578 is characterized for operation from 0°C to 85°C.
