SN54ABT16374A

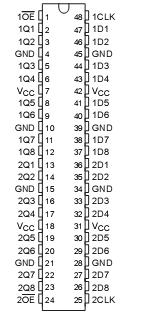

Pinout




Specifications

Supply voltage range, V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..0.5 V to 7 V
Input voltage range, V_I (except I/O ports) (see Note 1)  . . . .  . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, V_O . . . .  . . . . . .
                                                                       . . . .  . . . . . . .. . . .  . . .  0.5 V to 5.5 V

Current into any output in the low state, I_O : SN54ABT16374A. . .  . ..  .  .  .  .   96mA
                                                                        SN74ABT16374A  . . .  .  .  .   .  . 128mA
Input clamp current, I_IK  (V_I < 0)  . . . . . . . . . . . . . . . . . . . . . . . . .  .  . . . . . . . 18mA
Output clamp current, I_OK  (V_O < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . .. . .  . . .50mA
Package thermal impedance, JA (see Note 2): DGG package . . . . . . . . . . . 89°C/W
                                                                           DL package  . . . . . .. . . . . . . 94/W
Storage temperature range, T_stg   . . . . . . . . .. . .  . . . . . . . . . . . . . . .. 65 to150


Description

The SN54ABT16374A are 16-bit edge-triggered D-type flip-flops with 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

These SN54ABT16374A devices can be used as two 8-bit flip-flops or one 16-bit flip-flop. On the positive transition of the clock (CLK) input, the Q outputs of the flip-flop take on the logic levels set up at the data (D) inputs.
