Features:

Members of the Texas Instruments Widebus^TM Family
State-of-the-Art EPIC-II B^TM BiCMOS Design Significantly Reduces Power Dissipation
Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
Typical V_OLP (Output Ground Bounce)< 1 V at V_CC = 5 V, T_A = 25 C
Distributed V_CC and GND Pin Configuration Minimizes High-Speed Switching Noise
Flow-Through Architecture Optimizes PCBLayout
High-Drive Outputs (32-mA I_OH , 64-mA I_OL )
Package Options Include Plastic 300-mil Shrink Small-Outline (DL), Thin Shrink Small-Outline (DGG), and Thin Very Small-Outline (DGV) Packages, and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings

Pinout

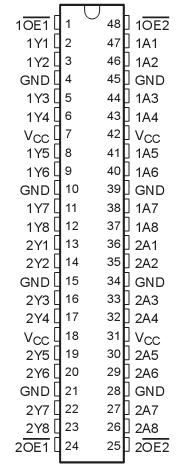

Connection Diagram

Specifications

Supply voltage range, V_CC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, V_I(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, V_O. . . . . . . . . . . . . . . . . . . . .0.5 V to 5.5 V
Current into any output in the low state, I_O: SN54ABT16540 96 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 mA
SN74ABT16540A 128 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . ... .... .... .... .... .... .... .... .... .... .... .... .... .... ...128 mA
Input clamp current, I_IK(V_I< 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 mA
Output clamp current, I_OK (V_O< 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, q JA (see Note 2): DGG package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. .. . 89/W
DGV package . . . . . . . . . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 93/W
DL package . . . . . . . . . . . . . .. .. .. .. .. .. .. .. .. .. .. .. .... .... .94/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to 150

Description

The SN54ABT16540 and SN74ABT16540A are inverting 16-bit buffers/drivers composed of two 8-bit sections with separate output-enable gates. These SN54ABT16540 and SN74ABT16540A buffers and bus drivers provide a high-performance bus interface for wide data paths.

The 3-state control gate is a 2-input AND gate with active-low inputs so that if either output-enable (OE1 or OE2) input is high, all corresponding outputs of SN54ABT16540 and SN74ABT16540A are in the high-impedance state.To ensure the high-impedance state during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.The SN54ABT16540 is characterized for operation over the full military temperature range of 55 to 125. The SN74ABT16540A is characterized for operation from 40 to 85.
