SN54ABT16823

Features:

 Members of the Texas Instruments Widebus^TM Family
 State-of-the-Art EPIC-IIBE BiCMOS Design Significantly Reduces Power Dissipation
 High-Impedance State During Power Up and Power Down
 ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
 Typical VOLP (Output Ground Bounce) < 1 V at V_CC = 5 V, T_A = 25°C
 Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
 Flow-Through Architecture Optimizes PCB Layout
 High-Drive Outputs (32-mA IOH,64-mA IOL)
 Package Options Include Plastic 300-mil Shrink Small-Outline (DL), Thin Shrink Small-Outline (DGG) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings

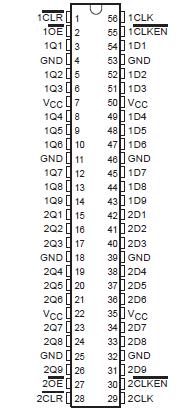

Pinout




Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, V_I (see Note 1) .. . . . ... . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, V_O . . . . . . . . . 0.5 V to 5.5 V
Current into any output in the low state, I_O: SN54ABT16823 .. . . . . . . . . . . . . . . . . . . . . . . . 96 mA
                                                                       SN74ABT16823  . . . . . . . . . . . . . . . . . . . . . . . 128 mA
                                                                       Input clamp current, I_IK (V_I < 0) . . . . . . . . . . 18 mA
                                                                       Output clamp current, I_OK (V_O < 0) . . . . . . . . 50 mA
Package thermal impedance, q_JA (see Note 2): DGG package.. . . . . . . . . . . . . . . . . . . . . . . 81°C/W
                                                                           DL package . . . . . . . . . . . . . . . . . . . . . . . . 74°C/W
Storage temperature range, T_stg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

These 18-bit flip-flops feature 3-state outputs of 'ABT16823 designed specifically for driving highly capacitive or relatively low-impedance loads. 'ABT16823 is particularly suitable for implementing wider buffer registers, I/O ports, bidirectional bus drivers with parity, and working registers.

The 'ABT16823 can be used as two 9-bit flip-flops or one 18-bit flip-flop. With the clock-enable (CLKEN) input low, the D-type flip-flops enter data on the low-to-high transitions of the clock. Taking CLKEN high disables the clock buffer,latching the outputs. Taking the clear ( CLR ) input low causes the Q outputs to go low independently of the clock.
