Product Details

Description



Features:

Inputs Are TTL-Voltage Compatible
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
     2000-V Human-Body Model (A114-A)
     200-V Machine Model (A115-A)
     1000-V Charged-Device Model (C101)


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless

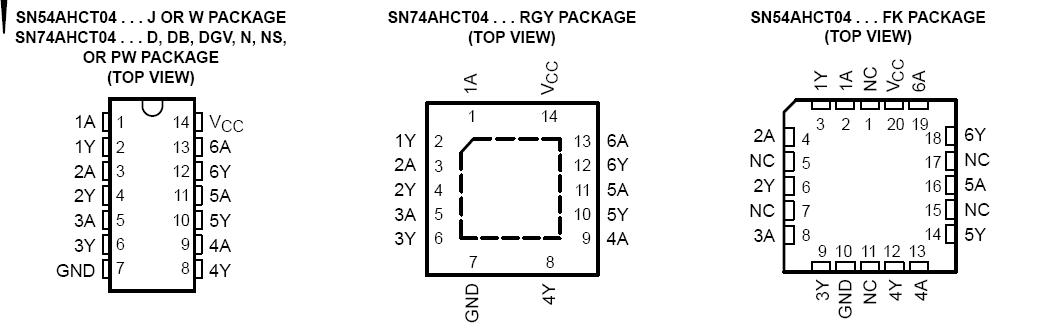

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Output voltage range, VO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . 0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA
 Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Package thermal impedance, JA (see Note 2): D package . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . 86°C/W
                                                     (see Note 2): DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
                                                     (see Note 2): DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                     (see Note 2): N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
                                                     (see Note 2): NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76°C/W
                                                     (see Note 2): PW package . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . 113°C/W
                                                     (see Note 3): RGY package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 65°C to 150°C


Description

      The'AHCT04 devices contain six independent inverters. These devices perform the Boolean function Y =A .
