Product Details

Description



Features:

` Members of the Texas Instruments
  WidebusE Family
` State-of-the-Art Advanced BiCMOS
  Technology (ABT) Design for 3.3-V
  Operation and Low Static-Power Dissipation
` 5-V I/O Compatible
` High Drive Capability (32 mA/64 mA)
` Support Mixed-Mode Signal Operation (5-V
  Input and Output Voltages With 3.3-V VCC)
` Support Unregulated Battery Operation
  Down to 2.3 V
` Typical VOLP (Output Ground Bounce)
  < 0.8 V at VCC = 3.3 V, TA = 25°C
` Auto3-State Eliminates Bus Current
  Loading When Voltage at the Output
  Exceeds VCC
` Ioff and Power-Up 3-State Support Hot Insertion
` Bus Hold on Data Inputs Eliminates the
  Need for External Pullup/Pulldown Resistors
` Latch-Up Performance Exceeds 250 mA Per JESD 17
` ESD Protection Exceeds 2000 V Per
  MIL-STD-883, Method 3015; Exceeds 200 V
  Using Machine Model (C = 200 pF, R = 0)
` Package Options Include Plastic 300-mil
  Shrink Small-Outline (DL), Thin Shrink
  Small-Outline (DGG), Thin Very
  Small-Outline (DGV) Packages, and 380-mil
  Fine-Pitch Ceramic Flat (WD) Package

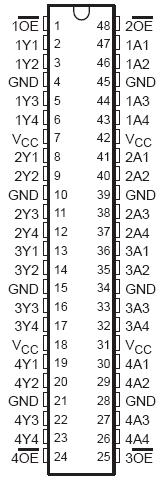

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Voltage range applied to any output in the high-impedance
or power-off state, VO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the high state, VO (see Note 1) . . . . . . . . . 0.5 V to VCC to 7V
Output current in the low state, IO: SN54ALVTH16244 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 mA
SN74ALVTH16244 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . 128 mA
Output current in the high state, IO: SN54ALVTH16244 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 mA
SN74ALVTH16244 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . .64 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Package thermal impedance, qJA (see Note 2): DGG package . . . . . . . . . . . . . . . . . . . . . . . . . . . .89°C/W
DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93°C/W
DL package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. The package thermal impedance is calculated in accordance with JESD 51.


Description

The SN54ALVTH16244 is 16-bit buffers/line drivers designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.

Active bus-hold circuitry of SN54ALVTH16244 is provided to hold unused or floating data inputs at a valid logic level When VCC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, the output-enable (OE) input should be tied to VCC through a pullup resistor; the minimum value of the resistor SN54ALVTH16244 is determined by the current-sinking capability of the driver.

SN54ALVTH16244 is fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs of SN54ALVTH16244 in the high-impedance state during power up and power down, which prevents driver conflict.

The SN54ALVTH16244 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALVTH16244 is characterized for operation from 40°C to 85°C.
