Features:

• Package Options Include Plastic  Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs




Pinout

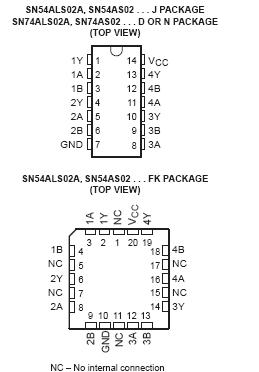

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Operating free-air temperature range, TA:SN54ALS02A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 125°C
                                                             SN74ALS02A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65°C to 150°C


Description

SN54ALS02A and SN54AS02 contain four independent 2-input positive-NOR gates. They perform the Boolean functions Y = A + B or Y = A • B in positive logic.

The SN54ALS02A and SN54AS02 are characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS02A and SN74AS02 are characterized for operation from 0°C to 70°C.
