SN54AS109

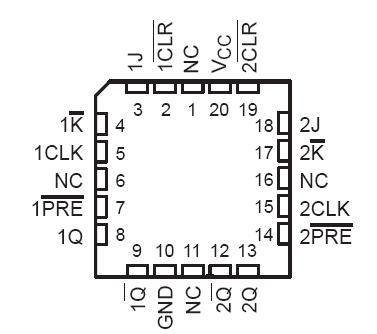

SN54ALS109A and SN54AS109 contain two independent J-K positive-edge-triggered flip-flops. A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs regardless of the levels of the other inputs. When PRE and CLR are inactive (high), data at the J and K inputs of SN54ALS109A and SN54AS109 meeting the setup-time requirements are transferred to the outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the J and K inputs can be changed without affecting the levels at the outputs. SN54ALS109A and SN54AS109 versatile flip-flops can perform as toggle flip-flops by grounding K and tying J high. They also can perform as D-type flip-flops if J and K are tied together.

The SN54ALS109A and SN54AS109 are characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS109A and SN74AS109A are characterized for operation from 0°C to 70°C.
