SN54AS241

Features: • 3-State Outputs Drive Bus Lines or Buffer Memory-Address Registers• PNP Inputs Reduce DC Loading• Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPsPinoutSpecificationsSupply v...

product image

SN54AS241 Picture
See larger image
SeekIC No. : 004496681 Detail

SN54AS241: Features: • 3-State Outputs Drive Bus Lines or Buffer Memory-Address Registers• PNP Inputs Reduce DC Loading• Package Options Include Plastic Small-Outline (DW) Packages, Ceramic C...

SN54AS241 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN54AS241
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3-State Outputs Drive Bus Lines or Buffer
  Memory-Address Registers
• PNP Inputs Reduce DC Loading
• Package Options Include Plastic
  Small-Outline (DW) Packages, Ceramic
  Chip Carriers (FK), and Standard Plastic (N)
  and Ceramic (J) 300-mil DIPs


Pinout

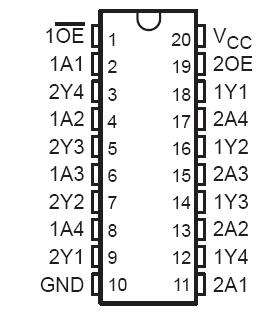

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5 V
Operating free-air temperature range, TA: SN54ALS241B, SN54AS241 . . . . . . . . . . . . . . . 55°C to 125°C
SN74ALS241C, SN74AS241 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

These octal buffers and line drivers of SN54ALS241B and SN54AS241 are designed specifically to improve both the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and noninverting outputs, symmetrical OE (active-low output control) inputs, and complementary OE and OE inputs. SN54ALS241B and SN54AS241 feature high fan-out and improved fan-in.

The 1 version of the SN74ALS4 parts are identical to their standard versions except the recommended maximum IOL is increased to 48 mA. There are no 1 versions of the SN54ALS241B.

The SN54ALS241B and SN54AS241 are characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS241C and SN74AS241 are characterized for operation from 0°C to 70°C.
