SN54AS86A

Supply voltage, V_CC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7V
toltage, V_I. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .7V
Operating free-air temperature range,

T_A :SN54ALS86 . . . . . .. .55°C to 125°C
SN74ALS86. . . . . . .. .  .0 to 70°C

Storage temperature range . . . . . . . . . . . . . . . . . . .65°C to 150°C


†Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

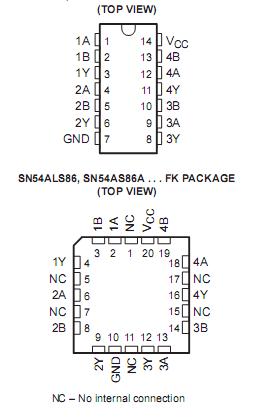

SN54ALS86 and SN54AS86A contain four independent 2-input exclusive-OR gates. They perform the Boolean functions Y = A  B or Y = A B + AB   in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output. The SN54ALS86 and SN54AS86A are characterized for operation over the full military temperature range of 55°C to 125°C. TheSN74ALS86 and SN74AS86A are characterizedfor operation from 0°C to 70°C.
