SN54CDC341

Features: ` Low Output Skew, Low Pulse Skew for Clock-Distribution and Clock-Generation Applications` TTL-Compatible Inputs and Outputs` Distributes One Clock Input to Eight Outputs` Distributed VCC and Ground Pins Reduce Switching Noise` High-Drive Outputs (48-mA IOH, 48-mA IOL)` State-of-t...

product image

SN54CDC341 Picture
See larger image
SeekIC No. : 004496773 Detail

SN54CDC341: Features: ` Low Output Skew, Low Pulse Skew for Clock-Distribution and Clock-Generation Applications` TTL-Compatible Inputs and Outputs` Distributes One Clock Input to Eight Outputs` Distributed...

SN54CDC341 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN54CDC341
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low Output Skew, Low Pulse Skew for
  Clock-Distribution and Clock-Generation Applications
` TTL-Compatible Inputs and Outputs
` Distributes One Clock Input to Eight Outputs
` Distributed VCC and Ground Pins Reduce
  Switching Noise
` High-Drive Outputs (48-mA IOH,
  48-mA IOL)
` State-of-the-Art EPIC-IIBE BiCMOS Design
  Significantly Reduces Power Dissipation
` Package Options Include Ceramic
  Flatpacks (W), Ceramic Chip Carriers (FK),
  and Ceramic (J) 300-mil DIPS


Pinout

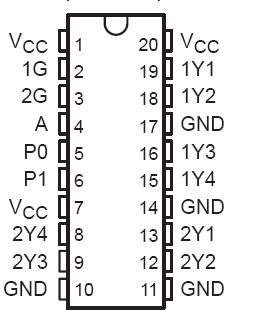

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high state or power-off state,
VO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Current into any output in the low state, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 mA
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.


Description

The SN54CDC341 is a high-performance clockdriver circuit that distributes one (A) input signal to eight (Y) outputs with minimum skew for clock distribution. Through the use of the control pins (1G and 2G), the outputs of SN54CDC341 can be placed in a low state regardless of the A input.

The propagation delays of SN54CDC341 are adjusted at the factory using the P0 and P1 pins. These pins are not intended for customer use and should be strapped to GND.

The SN54CDC341 is characterized for operation over the full military temperature range of 55°C to 125°C.
