SN54HC14 General Description
SN54HC14 Maximum Ratings
Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . ... . -0.5 V to 7 V
Input clamp current, IIK(VI< 0 or VI > VCC ) (see Note 1) . . . . . ±20 mA
Output clamp current, IOK(VO< 0 or VO> VCC ) (see Note 1) . . . ±20 mA
Continuous output current, IO(VO = 0 to VCC ) . . .. . .. . .. . .. . .±25 mA
Continuous current through VCC or GND . . .. .. . .. . . .. . .. . . .. .±50 mA
Package thermal impedance, JA(see Note 2):D package . . . . . 86/W
DB package . ..... 96/W
N package ......... 80/W
Ns package ........76/W
PW package ......113/W
Storage temperature range, Tstg . .. .. .. . .. .. .. . .. ..... .. -65 to 150
SN54HC14 Features
Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up To 10 LSTTL Loads
Low Power Consumption, 20-A Max ICC
Typical t = 11 ns
±4-mA Output Drive at 5 V
Low Input Current of A Max
SN54HC14 Typical Application
Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless

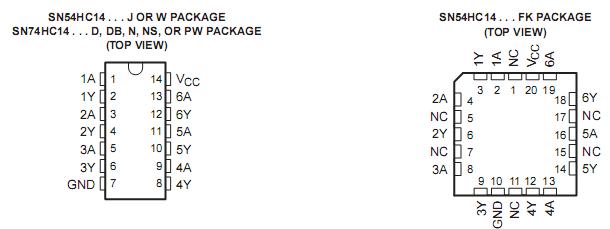

SN54HC14 Connection Diagram
