Purchase SN54LS09J, In-stock SN54LS09J From SeekIC.
MFG:TI Package Cooled:CDIP
- Table of contents:
SN54LS09J
-
Suppliers
DataSheet
General Description
SN54LS09J Maximum Ratings
| Symbol | Parameter | Min | Typ | Max | Unit | |
| VCC | Supply Voltage | 54 74 |
4.5 4.75 |
5.0 5.0 |
5.5 5.25 |
V |
| TA | Operating Ambient Temperature Range | 54 74 |
55 0 |
25 25 |
125 70 |
°C |
| IOH | Output Current - High | 54,74 | 5.5 | mA | ||
| IOL | Output Current - Low | 54 74 |
4.0 8.0 |
mA |

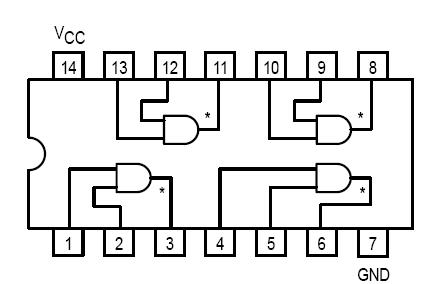

SN54LS09J Connection Diagram
SN54LS09J
PDF/DataSheet Download
- Datasheet: SN54LS09J
- File Size: 259272 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
