SN54LV02A

Features:

 2-V to 5.5-V V_CC Operation
 Max tpd of 6.5 ns at 5 V
 Typical V_OLP (Output Ground Bounce) <0.8 V at V_CC = 3.3 V, T_A = 25°C
 Typical V_OHV (Output VOH Undershoot) >2.3 V at V_CC = 3.3 V, T_A = 25°C
 Support Mixed-Mode Voltage Operation on All Ports
 I_off Supports Partial-Power-Down Mode Operation
 Latch-Up Performance Exceeds 250 mA Per JESD 17
 ESD Protection Exceeds JESD 22
    − 2000-V Human-Body Model (A114-A)
    − 200-V Machine Model (A115-A)
    − 1000-V Charged-Device Model (C101)

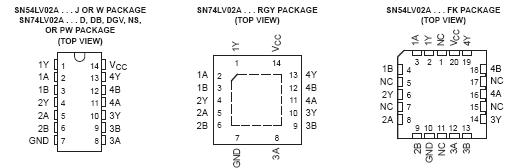

Pinout




Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . −0.5 V to 7 V
Input voltage range, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . −0.5 V to 7 V
Voltage range applied to any output in the high-impedance
or power-off state, V_O (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . −0.5 V to 7 V
Output voltage range, V_O (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . . . . . . .  . −0.5 V to VCC + 0.5 V
Input clamp current, I_IK (V_I < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . −20 mA
Output clamp current, I_OK (V_O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. −50 mA
Continuous output current, I_O (V_O = 0 to V_CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±25 mA
Continuous current through V_CC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. ±50 mA
Package thermal impedance, JA (see Note 3): D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
                                                     (see Note 3): DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
                                                     (see Note 3): DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                     (see Note 3): NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76°C/W
                                                     (see Note 3): PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113°C/W
                                                     (see Note 4): RGY package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47°C/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
             2. This value is limited to 5.5 V maximum.
             3. The package thermal impedance is calculated in accordance with JESD 51-7.
             4. The package thermal impedance is calculated in accordance with JESD 51-5.


Description

The 'LV02A devices are quadruple 2-input positive-NOR gates designed for 2-V to 5.5-V V_CC operation.

The 'LV02A devices perform the Boolean function Y = A + B or Y = A • B in positive logic.

LV02A is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
