SN54LV06A

Features: 2-V to 5.5-V VCCOperation Max tpd of 6.5 ns at 5 V Typical VOLP(Output Ground Bounce) <0.8 V at VCC= 3.3 V, TA= 25°C Typical VOHV(Output VOHUndershoot) >2.3 V at VCC= 3.3 V, TA= 25°C Outputs Are Disabled During Power Up and Power Down With Inputs Tied to GND Support Mixed-Mode Vol...

product image

SN54LV06A Picture
See larger image
SeekIC No. : 004497050 Detail

SN54LV06A: Features: 2-V to 5.5-V VCCOperation Max tpd of 6.5 ns at 5 V Typical VOLP(Output Ground Bounce) <0.8 V at VCC= 3.3 V, TA= 25°C Typical VOHV(Output VOHUndershoot) >2.3 V at VCC= 3.3 V, TA= 25°...

SN54LV06A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN54LV06A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

     2-V to 5.5-V VCC Operation
     Max tpd of 6.5 ns at 5 V
     Typical VOLP (Output Ground Bounce)
        <0.8 V at VCC= 3.3 V, TA = 25°C
    Typical VOHV (Output VOH Undershoot)
       >2.3 V at VCC= 3.3 V, TA = 25°C
    Outputs Are Disabled During Power Up and
        Power Down With Inputs Tied to GND
    Support Mixed-Mode Voltage Operation on
       All Ports
     Latch-Up Performance Exceeds 100 mA Per
       JESD 78, Class II
    ESD Protection Exceeds JESD 22
      −  2000-V Human-Body Model (A114-A)
      −  200-V Machine Model (A115-A)
      −  1000-V Charged-Device Model (C101)

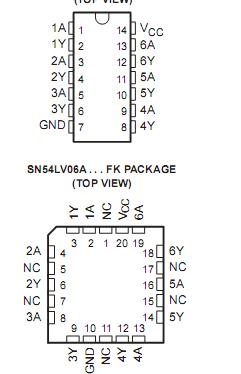

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .  −0.5 V to 7 V
Input voltage range, VI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(see Note 1) −0.5 V to 7 V
Voltage range applied to any output in the high-impedance or power-off state, VO
(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .... .−0.5 V to 7 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −20 mA
Output clamp current, IOK (VO < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  −50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. −35 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . ±50 mA
Package thermal impedance, JA (see Note 3):D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
                                                                         DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
                                                                         DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                                        NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 76°C/W
                                                                        PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113°C/W

Storage temperature range, TSTG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  −65°C to 150°C



Description

These hex inverter buffers/drivers are designed for 2-V to 5.5-V VCC operation.The 'LV06A devices perform the Boolean functionY = A  in positive logic.

The open-drain outputs of LV06A require pullup resistors to perform correctly and can be connected to other open-drain outputs to implement active-low
wired-OR or active-high wired-AND functions.

LV06A is fully specified for partial-power-down applications using I off. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
