SN54LV221A

Features:

 2-V to 5.5-V VCC Operation
 Max tpd of 11 ns at 5 V
 Support Mixed-Mode Voltage Operation on
All Ports
 Schmitt-Trigger Circuitry on A, B, and CLR
Inputs for Slow Input Transition Rates
 Overriding Clear Terminates Output Pulse
 Glitch-Free Power-Up Reset on Outputs

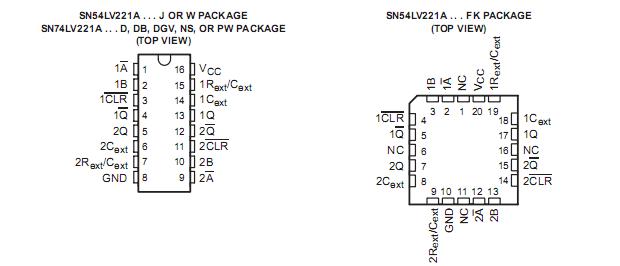

Pinout




Specifications

Supply voltage range, VCC  −0.5 V to 7 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, VI (see Note 1)  −0.5 V to 7 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output voltage range in high or low state, VO (see Notes 1 and 2)  −0.5 V to VCC + 0.5 V . . . . . . . . . . . . . . . . .
Output voltage range in power-off state, VO (see Note 1)  −0.5 V to 7 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input clamp current, IIK (VI < 0)  −20 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output clamp current, IOK (VO < 0)  −50 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous output current, IO (VO = 0 to VCC)  ±25 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous current through VCC or GND  ±50 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package thermal impedance, JA (see Note 3): D package  73°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DB package  82°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DGV package  120°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NS package  64°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PW package  108°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range, Tstg −65°C to 150°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


Description

The 'LV221A devices are dual multivibrators designed for 2-V to 5.5-V VCC operation. Each multivibrator has
a negative-transition-triggered (A) input and a positive-transition-triggered (B) input, either of which can be used
as an inhibit input.
These edge-triggered multivibrators of LV221A feature output pulse-duration control by three methods. In the first method,
the A input is low and the B input goes high. In the second method, the B input is high and the A input goes low.
In the third method, the A input is low, the B input is high, and the clear (CLR) input goes high.
The output pulse duration LV221A is programmable by selecting external resistance and capacitance values. The
external timing capacitor must be connected between Cext and Rext/Cext(positive) and an external resistor
connected between Rext/Cext and VCC. To obtain variable pulse durations, connect an external variable resistor
between Rext/Cext and VCC. The output pulse duration LV221A also can be reduced by taking CLR low.
Pulse triggering occurs LV221A at a particular voltage level and is not related directly to the transition time of the input
pulse. The A, B, and CLR inputs have Schmitt triggers with sufficient hysteresis to handle slow input transition
rates with jitter-free triggering at the outputs.
Once triggered, the outputs of LV221A are independent of further transitions of the A and B inputs and are a function of
the timing components, or the output pulses can be terminated by the overriding clear. Input pulses can be of
any duration relative to the output pulse. Output pulse duration LV221A can be varied by choosing the appropriate timing
components. Output rise and fall times are TTL compatible and independent of pulse duration. Typical triggering
and clearing sequences are illustrated in the input/output timing diagram.
The variance in output pulse duration from LV221A to LV221A typically is less than ±0.5% for given external timing
components. An example of this distribution for the 'LV221A is shown in Figure 8. Variations in output pulse
duration versus supply voltage and temperature are shown in Figure 5.
During power up, Q outputs of LV221A are in the low state, and Q outputs are in the high state. The outputs are glitch free,
without applying a reset pulse.
LV221A is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the
outputs, preventing damaging current backflow through the devices when they are powered down.
Pin assignments are identical to those of the 'AHC123A and 'AHCT123A devices, so the 'LV221A can be
substituted for those devices not using the retrigger feature.
