SN54LV27A

PinoutSpecificationsSupply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...........................−0.5 V to 7 VInput voltage range, VI(see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .................. −0.5 V to 7 VOutput vol...

product image

SN54LV27A Picture
See larger image
SeekIC No. : 004497085 Detail

SN54LV27A: PinoutSpecificationsSupply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...........................−0.5 V to 7 VInput voltage range, VI(see Note 1). . . ...

SN54LV27A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN54LV27A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

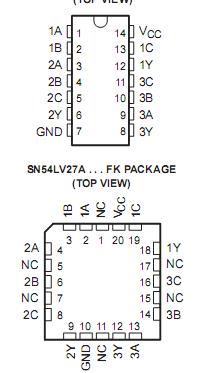

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...........................−0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ................. −0.5 V to 7 V
Output voltage range applied in high or low state, VO (see Notes 1 and 2) .....−0.5 V to VCC + 0.5 V
Output voltage range applied in power-off state, VO (see Note 1) . . . . . . . . . . . . . . . .  −0.5 V to 7 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .................... −20 mA
Output clamp current, IOK (VO < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  −50 mA
Continuous output current, IO (VO = 0 to VCC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...... ±25 mA
Continuous current through VCC or GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ......... ±50 mA
Package thermal impedance, JA (see Note 3):D package. . . . . . . . . . . . . . . . . . . .................. 86°C/W
                                                                          DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
                                                                          DGV package . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                                          NS package. . . . . . . . . . . . . . . . . . . . . . . . . . .  76°C/W
                                                                          PW package. . . . . . . . . . . . . . . . . . . . . . ........ 113°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .................−65°C to 150°C



Description

These triple 3-input positive-NOR gates of LV27A are designed for 2-V to 5.5-V VCC operation.

The 'LV27A devices perform the Boolean function Y = A + B + C</a> or Y = A</a>• B</a>• C</a> in positive logic.

LV27A is fully specified for partial-power-down  applications using I off. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
