Features:

2-V to 5.5-V VCC OperationSupport Mixed-Mode Voltage Operation on All Ports
High On-Off Output-Voltage Ratio Low Crosstalk Between Switches
Individual Switch Controls Extremely Low Input Current
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
   − 2000-V Human-Body Model (A114-A)
   − 200-V Machine Model (A115-A)
   − 1000-V Charged-Device Model (C101)

Pinout

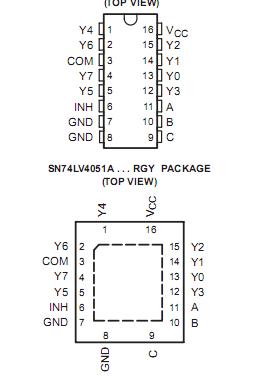

Connection Diagram

Specifications

Supply voltage range, VCC −0.5 V to 7.0 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, VI (see Note 1) −0.5 V to 7.0 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch I/O voltage range, VIO (see Notes 1 and 2) −0.5 V to VCC + 0.5 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input clamp current, IIK (VI < 0) −20 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O diode current, IIOK (VIO < 0) −50 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch through current, IT (VIO = 0 to VCC) ±25 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous current through VCC or GND ±50 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package thermal impedance, JA (see Note 3): D package 73°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 3): DB package 82°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 3): DGV package 120°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 3): N package 67°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 3): NS package 64°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 3): PW package 108°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 4): RGY package 39°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range, Tstg −65°C to 150°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Description

These 8-channel CMOS analog multiplexers/demultiplexers of LV4051A are designed for 2-V to 5.5-V VCC operation.
The 'LV4051A devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction.
LV4051A applications include signal gating, chopping, modulation or demodulation (modem), and signal
multiplexing for analog-to-digital and digital-toanalog conversion systems.
